What is Vacuum Casting
Ready for your Marketing and Functional Test
Vacuum Casting is a copying technique used for the production of small series of functional plastic parts. Using two-component polyurethanes and silicone molds, Vacuum Casting is known for its fast production of high-quality prototypes or end-use products.
Why choose Vacuum Casting?
Silicone molding results in high-quality parts comparable to injection-molded components. This makes vacuum casted models especially suitable for fit and function testing, marketing purposes or a series of final parts in limited quantities. Vacuum Casting also lends itself well to a variety of finishing degrees, and we can match the finish you need for your parts.
What is Vacuum Casting
◆ Molds can be made in a couple of days
◆ Molds are durable for 20 or more copies
◆ Economical Mold
◆ Pre-launch product testing
◆ Small series of housings and covers
◆ Wide range of post-processing techniques can be choosed
How Does Vacuum Casting Work?
Step 1 Get the 3D model
Step 2 Master built in CNC or SLA
Step 3 Master is immersed in silicone to form the mold
Step 4 Polyurethane is poured into the mold and casted under vacuum
Step 5 Post-treatment for the Product
| Technical Specifications |
|---|
| Standard lead time |
| Up to 20 copies within 10 working days |
| Standard accuracy |
| ±0.2% (with a lower limit on ± 0.2 mm on dimensions smaller than 100 mm) |
| Minimum wall thickness |
| To ensure that the mold is filled properly, a wall thickness of at least 0.75 mm is necessary. For best results, we recommend a wall thickness of at least 1.5 mm |
| Maximum part dimensions |
| The size of the mold is limited by the dimensions of the vacuum chamber (1900 x 900 x 750 mm) and by the volume of the product (maximum volume: 10 liters) |
| Typical quantities: 10-50pcs |
| Surface structure: Painting/Electroplating |
| High-quality surfacefinish comparable to injection molding |
Why choose Vacuum Casting with GD prototyping？
Economical Cost: Compared with other low volumen production technique, the vacuum casting is one of the most economical processing technique to make your parts.
Advanced Imported Material: At our silicon mold center, we use the advanced material to make your parts, with datasheet and material report provided .
Diverse Post-treatment: Generally the parts that come out directly from the silicon mold may need some post-treatment like painting or silk screen. As your one stop partner you can find a wide range of finishes for your projects.
Premium Quality: Our professional and experienced engineers will control every processes during the product-making, with nearly ZERO rejection rate for the quality of this processes.
Expectational speed: Every RFQ will be answered within 12 hours and normally the vacuum casting takes 7-14 days to delivery the parts.
High-Complex Vacuum Casting techiques: At Best Protoypes, we have lots of sucessful cases regarding of this process, such as: Overmoulding (Premade parts are placed into the mold to mold over them together. Such as:Instrument board) and 2 colors silicon mold (A silicon mold that fabricates two different colors for parts.Such as: Automotive lamp. )

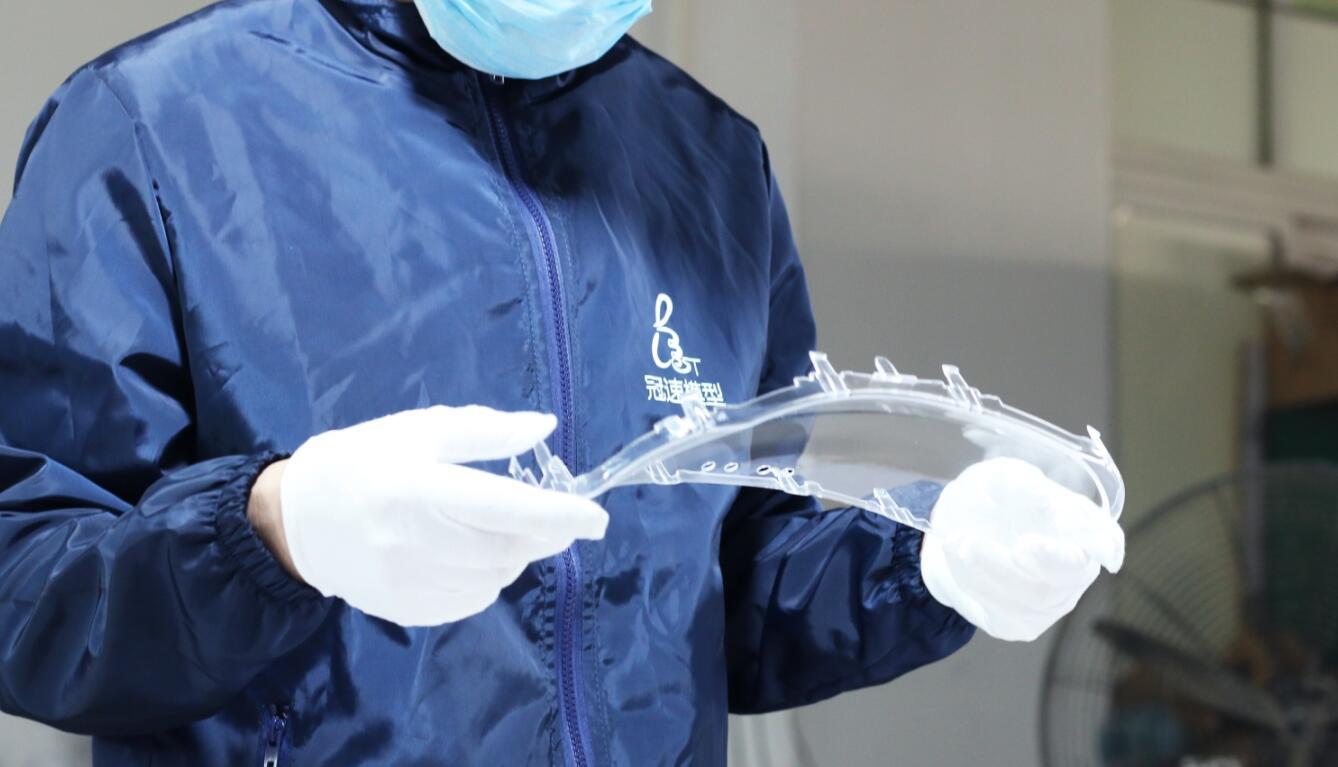

Picture Display
We offer a wide range of CNC machining services including milling and turning of various materials, as well as drilling, tapping, EDM (Electrical Discharge Machining), and wire EDM.
Vacuum Casting is a copying technique used for the production of small series of functional plastic parts.
